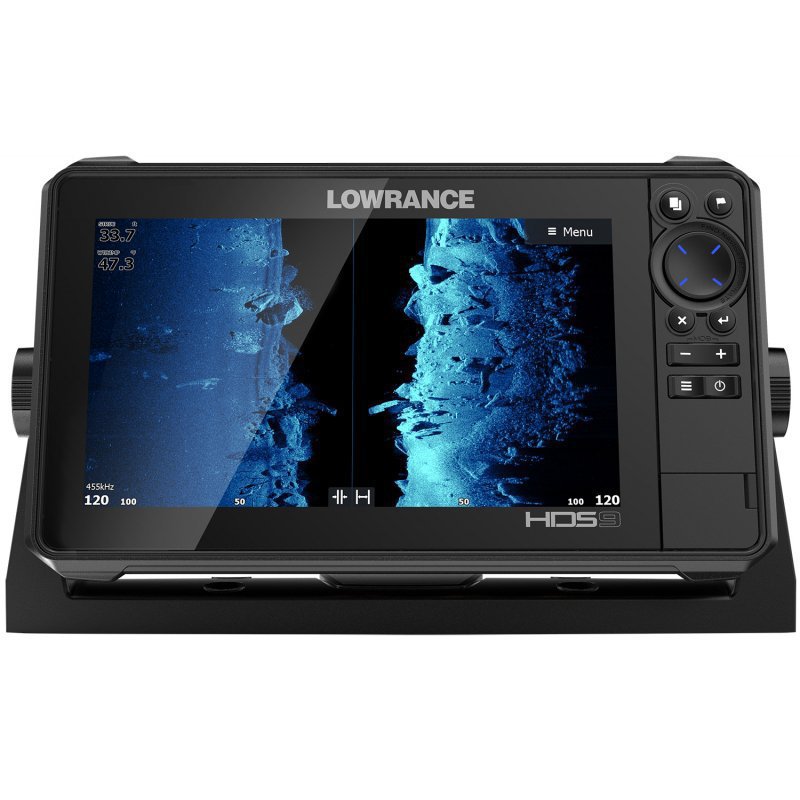

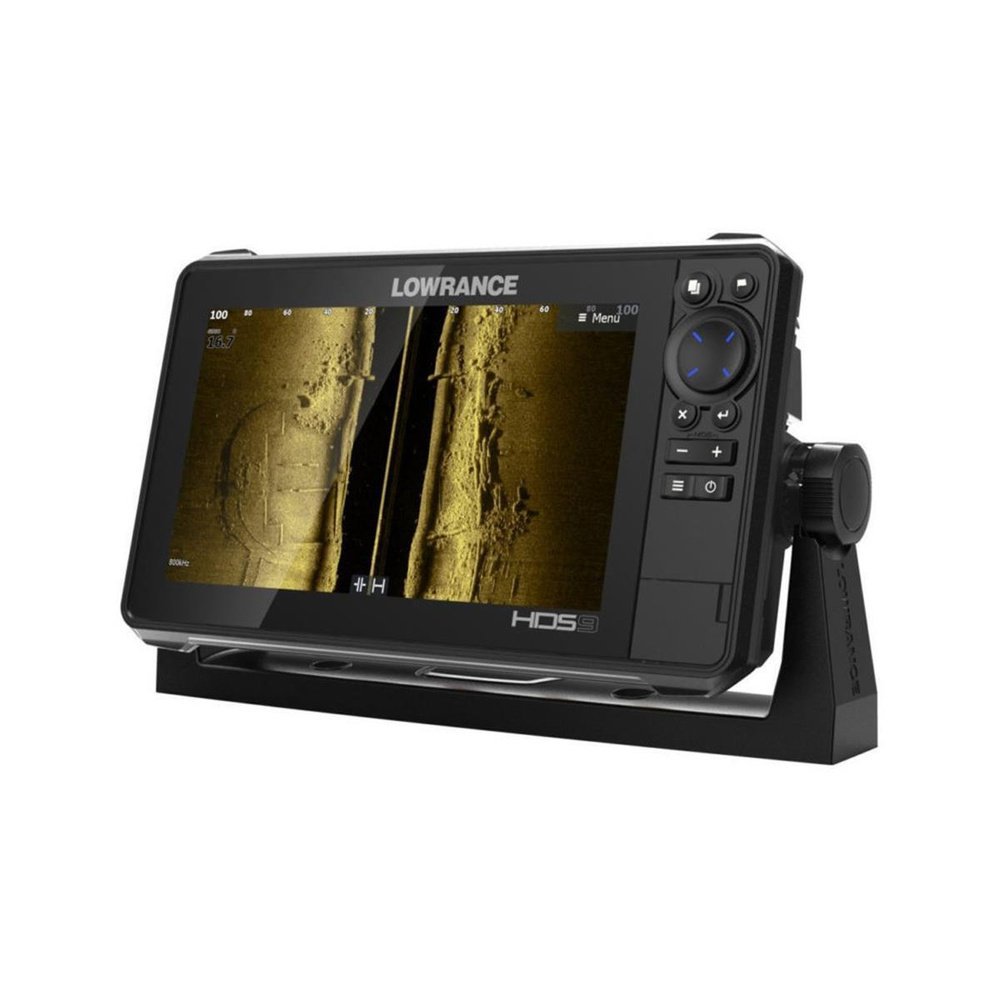

LOWRANCE HDS-9 LIVE with Active Imaging 3-in-1 (ROW)+GIFT 18Ah AGM battery

Big enough for use as a standalone display, but compact enough to fit consoles with limited space, the HDS LIVE 9 offers access to the latest Lowrance® fishfinding innovations with support for Active Imaging™, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging and Genesis Live onscreen mapping.

Key Features

• Features 7-, 9-, 12- and 16-inch models
• Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
• Active Imaging™ 2-in-1 (Side/Down) sonar ready*
• StructureScan® 3D with Active Imaging enhancements
• LiveSight real-time sonar compatible*
• Smartphone notifications
• Powerful quad-core processor**
• High-performance dual-core processor
• Programmable keys**
• C-MAP Genesis Live onscreen mapping
• FishReveal™ Smart Target View
• Six-panel, splitscreen capability**
• Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
• High-resolution SolarMAX™ HD multi-touch screen
• Preloaded worldwide basemap
• C-MAP Easy Routing, Navionics Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
• Live Network Sonar
• SiriusXM® Marine Weather and Audio compatible
• Wireless and Bluetooth® connectivity
• Heat Map Chart Overlay
• Enhanced Surface Clarity
• Quick Access Control Bar
• Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
• Radar and SonicHub®2 audio server connectivity
• NMEA 2000® engine support
• Optional mapping upgrades include C-MAP, Navionics® and more

Specification

Screen brightness 1200 nits
Power Consumption 2.0A @ 13VDC at full brightness, sonar on
GPS 10 Hz GPS / GLONASS WAAS / EGNOS / MSAS
Screen resolution 1280 x 720
Supply voltage 12 V (10.8-17 V DC)
GPS receive channel 16
Ethernet ports 2x 100 Mbps, 6 maximum per network
NMEA 2000 1x Connector
SD Card slot 2 micro SD cards up to 32 GB
Weight 2.0 kg
Waypoints, Routes, Tracks 3000 Waypoints, 100 Routes, 100 Tracks
Storage temperature range -20 ° C to 60 ° C
Radar compatibility 4G (Broadband), 3G (Broadband), Halo24, Halo 3 '/ 4' / 6 '
Operating temperature range -15 ° C to 55 ° C
Internal memory 8.0 GB
Viewing angles 80 ° top / bottom, 80 ° left / right
Dimensions W x H x D 280.0 mm x 166.7 mm x 77.7 mm
Cartography support C-MAP (MAX N, MAX N +), C-MAP Genesis, Navionics
Mounting type Mounting bracket, panel flush, flush-mounted
Bluetooth Built-in Bluetooth 4.0 with Bluetooth Classic support
Sonar Support Built-in: CHIRP Broadband, Active Imaging, DownScan Active Imaging, SideScan. Supported by: SonarHub, StructureScan, StructureScan3D
WiFi Internal 802.11b / g / n
IPX7 water resistant
Autopilot Outboard Pilot, MotorGuide Xi5 / Xi3 Trolling Motor * (* Requires Motorguide PinPoint Gateway)
SonicHub2 Multimedia
