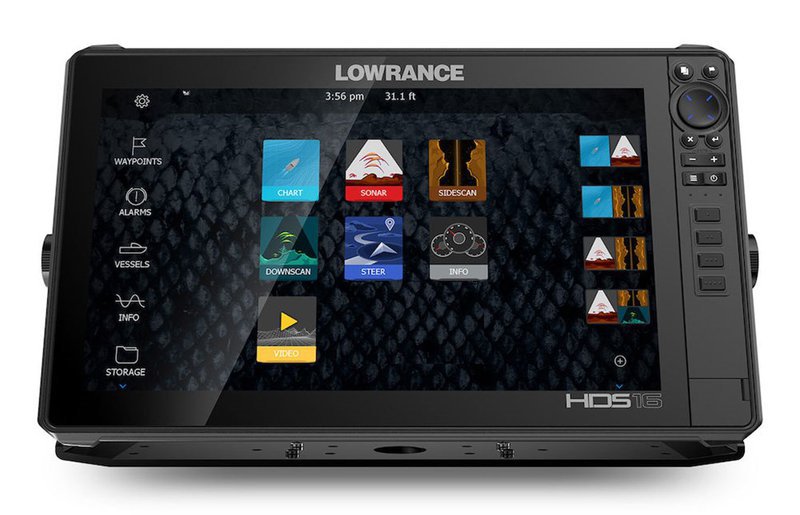

LOWRANCE HDS-16 LIVE with Active Imaging 3-in-1 (ROW)+GIFT 22Ah AGM battery

Articul: 000-14437-001
Free shipping is not available for this item
  • Description

Lowrance HDS-16 LIVE is a multifunction display with a new slim design and an even faster processor. This fishfinder supports a wide range of sonar technologies and also has a built-in set of navigation tools. This display helps you locate fish congestion even faster thanks to the support of Active Imaging technology, as it displays structure in an even wider range than other bottom imaging technologies.

The new LiveSight sensor will allow you to see the fish's reaction to the bait in real time. And with FishReveal, you can view fish arcs against a high-quality bottom structure in DownScan Imaging.

Create your own depth maps with C-Map Genesis Live and save them to MicroSD. And also use the cartography Navionics and C-Map.

Keep an eye out for fish and never miss important messages or calls with smartphone notifications on HDS Live display. Turn off phone notifications for continuous fishing, or leave them to receive pop-up notifications on your HDS Live display screen.

Lowrance HDS-16 LIVE Key Features

  • High-quality display of Active Imaging structure
  • StructureScan® 3D with enhanced imaging
  • Display fish movement in real time with LiveSight
  • Smartphone notifications on display
  • Powerful quad-core processor
  • Programmable keys
  • C-MAP Genesis Live Mapping function
  • FishReveal ™ fish detection
  • The ability to split the screen into 6 windows
  • Dual channel CHIRP
  • Network sounder
  • Bluetooth® support
  • Heatmap overlay
  • Quick Access Toolbar
  • Connecting the SonicHub®2 Media Module
  • NMEA 2000® motor connection


Screen brightness 1200 nits
Power consumption 4.9A @ 13VDC at full brightness, sonar on
Screen resolution 1920 x 1080 Full HD
Supply voltage 12 V (10.8-17 V DC)
GPS receive channel 16
Ethernet ports 2x 100 Mbps, 6 maximum per network
NMEA 2000 1x Connector
SD Card slot 2 micro SD cards up to 32 GB
Weight 3.6 kg
Waypoints, Routes, Tracks 3000 Waypoints, 100 Routes, 100 Tracks
Storage temperature range -20 ° C to 60 ° C
Radar compatibility 4G (Broadband), 3G (Broadband), Halo24, Halo 3 '/ 4' / 6 '
Operating temperature range -15 ° C to 55 ° C
Internal memory 8.0 GB
Viewing angles 80 ° top / bottom, 80 ° left / right
Dimensions W x H x D 430.5 mm x 259.2 mm x 87.8 mm
Cartography support C-MAP (MAX N, MAX N +), C-MAP Genesis, Navionics
Mounting type Fastening bracket, flush-mounted, flush-mounted
Bluetooth Built-in Bluetooth 4.0 with Bluetooth Classic support
Sonar Support Built-in: CHIRP Broadband, Active Imaging, DownScan Active Imaging, SideScan. Supported by: SonarHub, StructureScan, StructureScan3D
WiFi Internal 802.11b / g / n
IPX7 water resistant
Autopilot Outboard PilotMotorGuide Xi5 / Xi3 Trolling Motor * (* Requires Motorguide PinPoint Gateway)
SonicHub2 Multimedia
